Complete Well Servicing Pumps WS-340

SMC MODEL: WS - 340


Crossheads, connecting rods easily removed without disturbing crankshaft

Liners and /or stuffing boxes can be removed without a puller

Clam p-type connections with rod, plunger or piston rod reduces maintenance

Liner-Piston spray system availa ble for e xtended service different volumes/pressures are available with various large combinations of plungers /packing piston

Specifications
  • H.P. MAX...............................................350
  • STROKE................................................5 IN
  • RATED SPEED -MAX.......................450 RPM
  • PRESSURE - MAX.......................10,000 PSI
Connections
  • DISCH:.......................2 1/16” API 10+3 GBX
  • SUCT:..............................................6” BFW
  • WEIGHT:.......................................5200 LBS
  • (COMPARE: GARDNER-DENVER® MODEL PAH = 9250 LBS)
  • MAX FLOW.....................................350 GPM
  • PUMP AND PARTS* .....................Mfg in USA

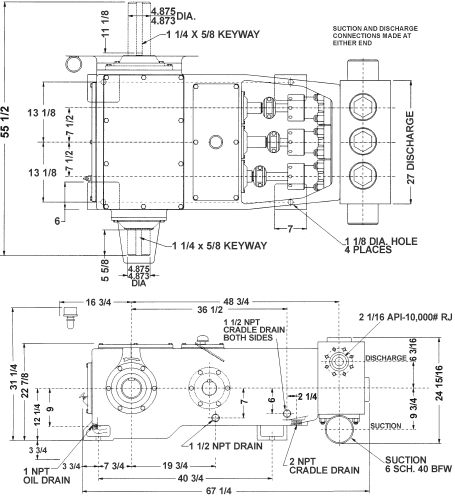

Product Blueprint
#

Performance Data

English
Diameter, in.
 Plungers Only 2 3/4” Plungers Only 3”
 3 1/2”
 4”
 Pistons Only 4 1/2”
gal/min. per RPM
 .3857 .4590 .6247 .8160 1.0327
bbl/min. per RPM .0092 .0109 .0149 .0194 .0246
RPM Req'd HP  PSI gal/min  bbl/min PSI gal/min  bbl/min PSI gal/min  bbl/min PSI gal/min  bbl/min PSI gal/min  bbl/min
450 340 3020 174 4.13 2539 206.6 4.894 1870 281 6.69 1430 367 8.74 - - -
400 340 3400 154 3.67 2857 183.6 4.371 2100 250 5.95 1610 326 7.77 - - -
350 340 3890 135 3.21 3265 160.7 3.825 2400 219 5.21 1840 286 6.80 - - -
300 340 4530 116 2.75 3809 137.7 3.279 2800 187 4.46 2140 245 5.83 - - -
250 340 5440 96 2.30 4571 114.8 2.732 3360 156 3.72 2570 204 4.86 - - -
225 340 6040 87 2.07 5078 103.3 2.459 3730 141 3.35 2860 184 4.37 2260 232 5.53
200 340 6800 77 1.84 5713 91.8 2.186 4200 125 2.97 3210 163 3.89 2540 207 4.92
100 252 10000 39 .92 8403 45.9 1.093 6220 62 1.49 4760 82 1.94 3760 103 2.46
50 126 10000 19 .46 8403 23.0 0.546 6220 31 .74 4760 41 .97 3760 52 1.23
25 63 10000 10 .23 8403 11.5 0.273 6220 16 .37 4760 20 .49 3760 26 .61

Metric Units
Plungers Only Plungers Only     Pistons Only
Diameter, in.
 69.9 76.2 88.9

 101.6 114.3
Liter/min. per RPM
 1.4600 1.7375 2.3649 3.0889  3.9094
M3/min. per RPM .00146 .00174 .00236 .00308 .00391
RPM Req'd HP  kg/cm2 L/min  M3/min kg/cm2 L/min  M3/min kg/cm2 L/min  M3/min kg/cm2 L/min  M3/min kg/cm2 L/min  M3/min
450 340 214 657 .657 178.5 782 .782 132 1064 1.06 101 1390 1.39 - - -
400 340 240 584 .584 200.9 695 .695 148 946 .946 114 1236 1.23 - - -
350 340 275 511 .511 229.6 608 .608 170 828 .828 130 1081 1.08 - - -
300 340 321 438 .438 267.8 521 .521 198 709 .709 152 927 .927 - - -
1250 340 385 365 .365 321.4 435 .435 237 591 .591 182 772 .772 - - -
225 340 427 328 .328 357.0 391 .391 263 532 .532 202 695 .695 160 880 .880
200 340 481 292 .292 401.7 348 .348 297 473 .473 227 618 .618 180 782 .782
100 252 703 146 .146 590.8 174 .174 437 236 .236 335 309 .309 264 391 .391
50 126 703 73 .073 590.8 87 .087 437 118 .118 335 154 .154 264 195 .195
25 63 703 36 .036 590.8 44 .044 437 59 .059 335 77 .077 264 98 .098
