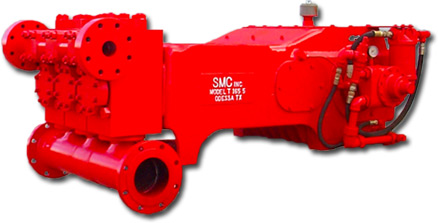

Complete Well Servicing Pumps T-165-5


SMC Mfg. High Pressure Well Servicing Pumps deliver superior service in oil fields throughout the world. SMC Mfg. Well Servicing Pumps are specifically designed for cementing, acidizing, sand control, hot oil service, and general workover service. With intermittent duty service and pressure ratings to 10,000 PSI.

  • Tapered adjustable main roller bearings.
  • 100-70-03 Ductile Iron Crankshaft.
  • Optional left or right hand crankshaft extension allows flexible installation.
  • Eccentric construction with extra large bearings surfaces.
  • Optional chain case available.
  • Pump housing and parts manufactured in USA.
  • Solid connecting rods.
  • Pressure lubrication to all critical power end parts.
  • Threaded cradle drains.
  • Suction and discharge openings on both sides.
  • Colmonoy, ceramic or tungsten carbide plungers.
  • Optional piston or plunger configurations.
#

MODEL T-165-5 TRIPLEX PLUNGER PUMP 3” Piston x 5” Stroke 165 HP
(Intermittent Service)
All parts interchangeable with Gardner Denver®
Pistons available in 2-3/4'', 3'', 3-1/2” and 4” only are limited to 4000PSI (281.2 KG/CM2).
Piston Size Displacement
per Revolution		 GALLONS PER MINUTE, LITERS PER MINUTE AT PUMP SPEED
50 100 200 250 300
IN MM. Gal Liter GPM LPM PSI kg/cm2 GPM LPM PSI kg/cm2 GPM LPM PSI kg/cm2 GPM LPM PSI kg/cm2 GPM LPM PSI kg/sq.2 cm
3 76 0.46 1.741 23 87 6222 438 46 174 5226 368 92 348 2613 184 115 435 2090 147 138 522 1742 123
2.75 70 0.387 1.464 19 73 7405 521 39 146 6164 433 77 293 3122 220 97 366 2504 176 116 439 2070 146
2.5 64 0.319 1.206 16 60 8960 630 32 121 7550 532 64 241 3774 265 80 302 3016 212 96 362 2515 177
2.25 57 0.258 0.978 13 49 10000 703 26 98 9318 655 52 196 4659 328 65 244 3727 262 78 293 3102 218
2 51 0.304 0.722 10 39 10000 703 20 77 10000 703 41 154 5892 414 51 193 4714 332 61 232 3928 276
1.75 44 0.156 0.592 8 30 10000 703 16 59 10000 703 31 118 7696 541 39 148 6157 433 47 178 5131 361

MODEL T-165-5 TRIPLEX PLUNGER PUMP 4” Piston x 5” Stroke 165 HP
(Intermittent Service)
All parts interchangeable with Gardner Denver®
Pistons available in 2-3/4'', 3'', 3-1/2” and 4” only are limited to 4000PSI (281.2 KG/CM2).
Piston Size Displacement
per Revolution		 GALLONS PER MINUTE, LITERS PER MINUTE AT PUMP SPEED
50 100 200 250 300
IN MM. Gal Liter GPM LPM PSI kg/cm2 GPM LPM PSI kg/cm2 GPM LPM PSI kg/cm2 GPM LPM PSI kg/cm2 GPM LPM PSI kg/cm2
4 102 0.817 3.091 41 155 3500 246 82 309 2932 20 163 618 1475 104 204 773 1178 83 245 927 981 69
3.5 89 0.623 2.359 31 118 4571 321 62 236 3816 268 125 472 1923 135 156 590 1541 108 187 708 1286 90
3 76 0.46 1.741 23 87 6222 438 46 174 5226 368 92 348 2613 184 115 435 2090 147 138 522 1742 123
2.75 70 0.387 1.464 19 73 7405 521 39 146 6164 433 77 293 3122 220 97 366 2504 176 116 439 2070 146
2.5 64 0.319 1.206 16 60 8960 630 32 121 7560 532 64 241 3774 265 80 302 3016 212 96 362 2515 177
2.25 57 0.258 0.978 13 49 10000 703 26 98 9318 655 52 196 4659 328 65 244 3727 262 78 293 3102 218
2 51 0.204 0.722 10 39 10000 703 20 77 10000 703 41 154 5892 414 51 193 4714 332 61 232 3928 276
1.75 44 0.156 0.592 8 30 10022 719 16 59 10000 703 31 118 7705 542 39 148 6164 433 47 178 5125 360
